LatchLock Light Duty Series

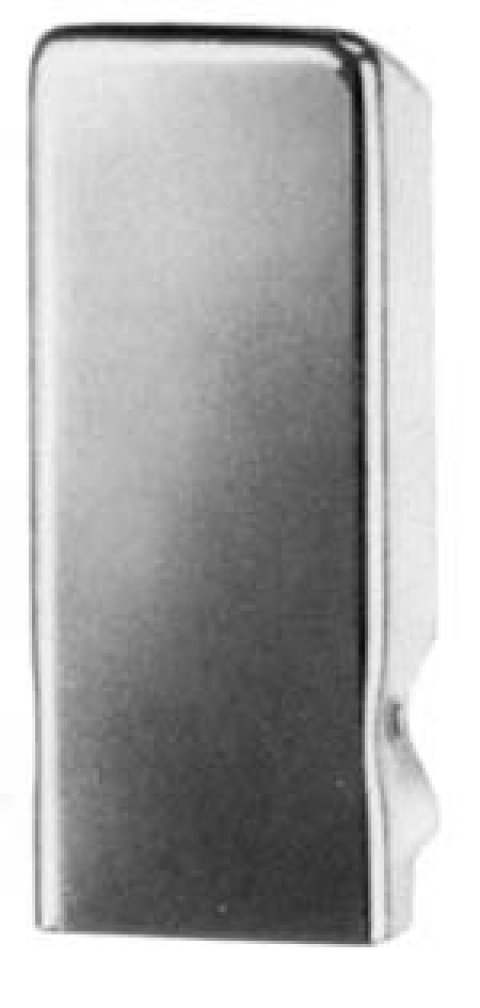

LLLCHS Series (Light Duty Concealed High Strength Latches)

This Series is the Meduim Duty version, with a concealing drawhook latch. Handle Conceal all interior elements as well as the strike, it has a self-compensating spring steel drawhook.

Latches LLLCHS25Z LLLCHS32Z LLLCHS25C LLLCHS32C
Strikes LSCHS25Z LSCHS32Z

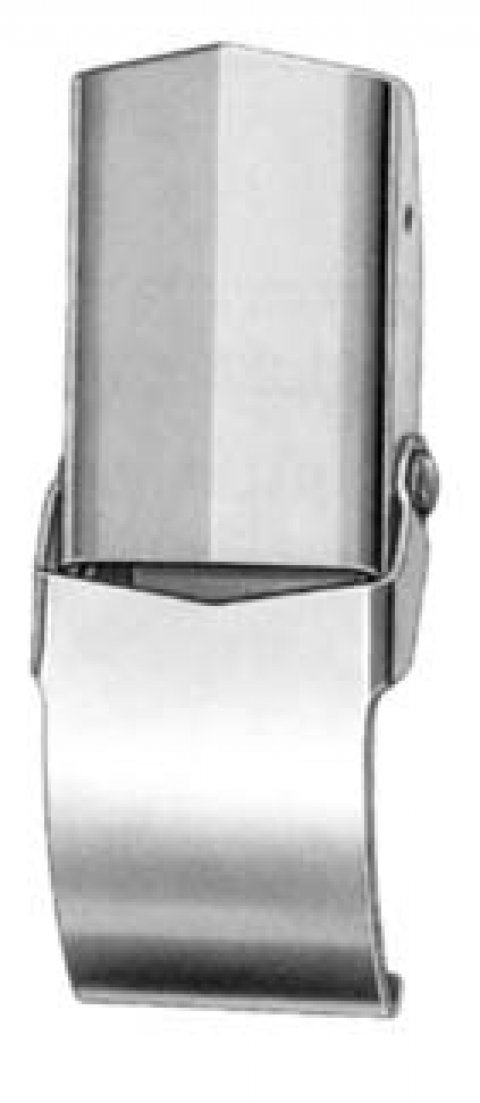

LLLD Series (Light Duty)

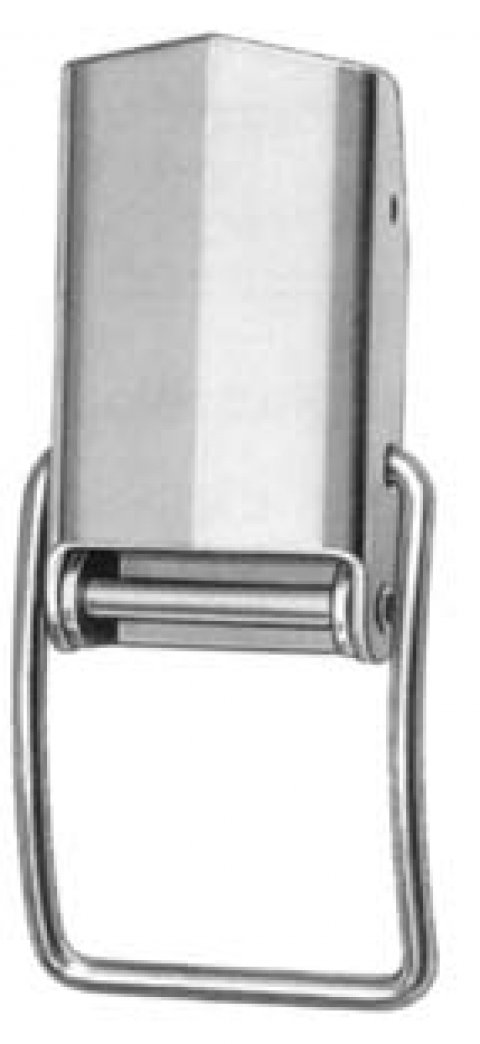

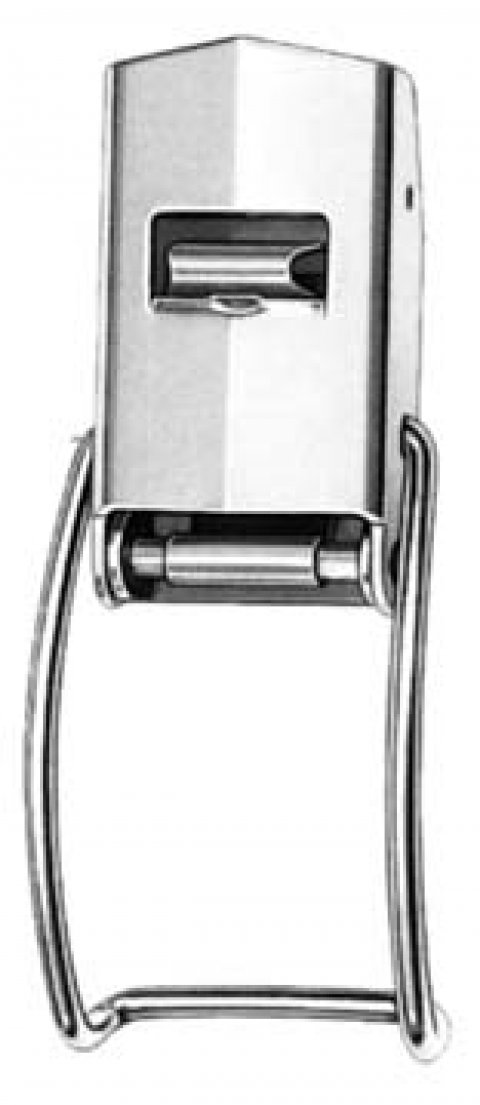

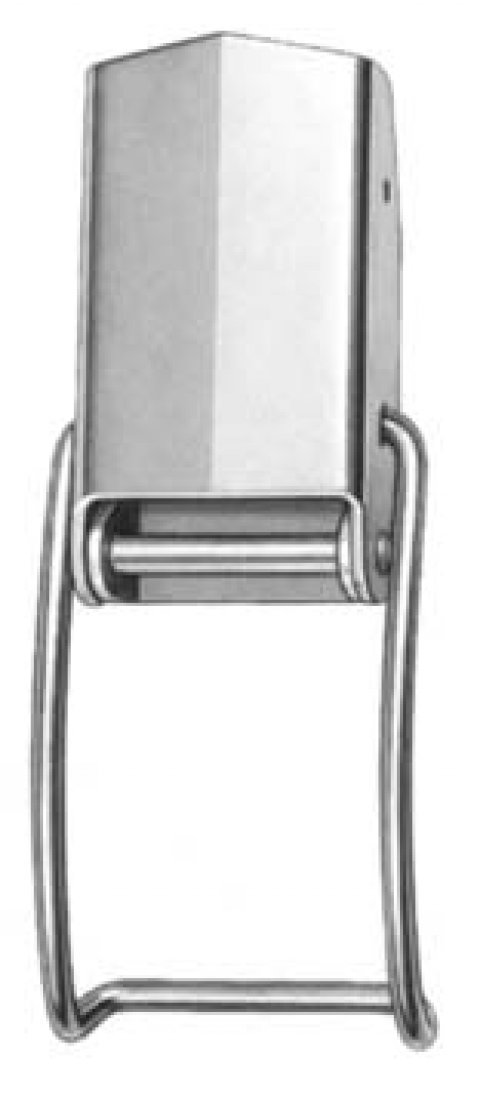

This Series is a range of draw latches, and has 3 different draw hook design: Regular draw, Wire draw hook, and Hooked wire draw hook. All Versions are also available with a secondary locking mechanism

Latches LLLD31Z LLLD31S LLLBC31Z LLLBC31S LLLCM31Z LLLCM31S

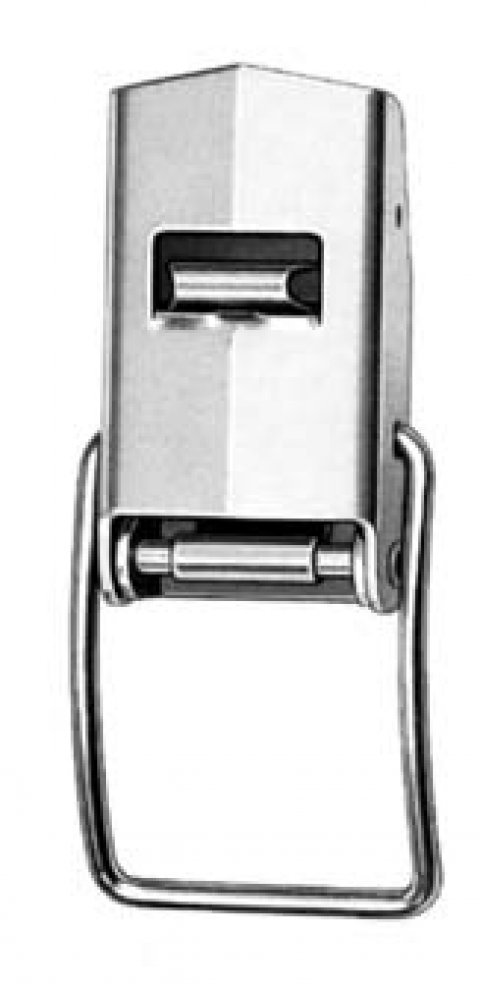

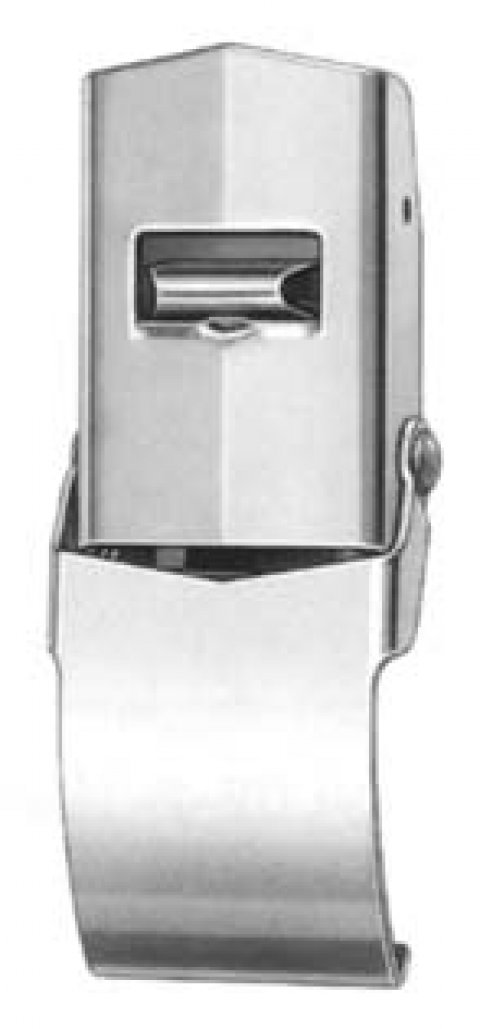

LLLDX31Z LLLDX31S LLLBCX31Z LLLBCX31S LLLCMX31Z LLLCMX31S

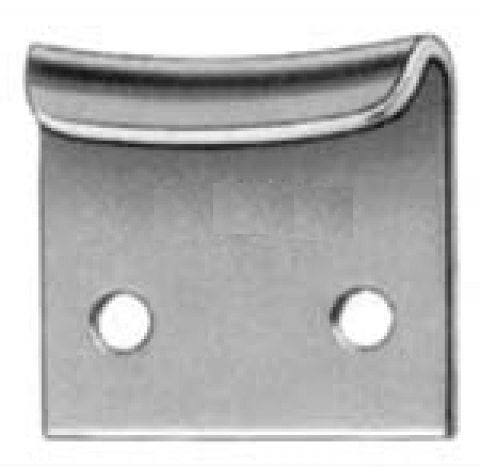

Strikes LSD31Z LSD31S LSBC31Z LSBC31S

Light Duty Latches LLLCHS Series Concealed High Strength

Installation Dimensions  LLLCHS Series Max tensile strength 1,000 N

Handle conceals all interior parts and strike

Self-compensating spring steel drawhook

LOW PROFILE

Light Duty Latches LLLD Series

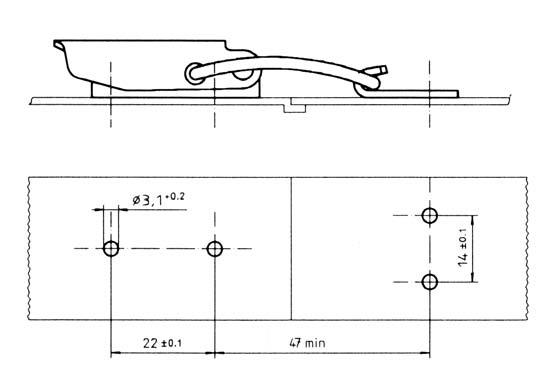

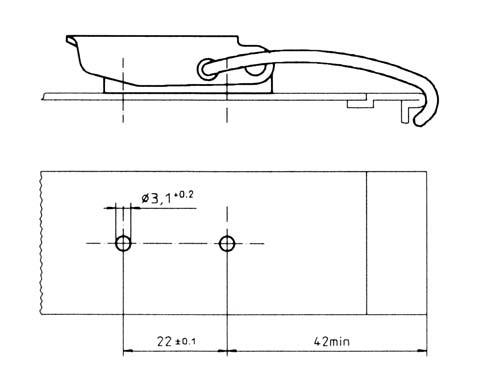

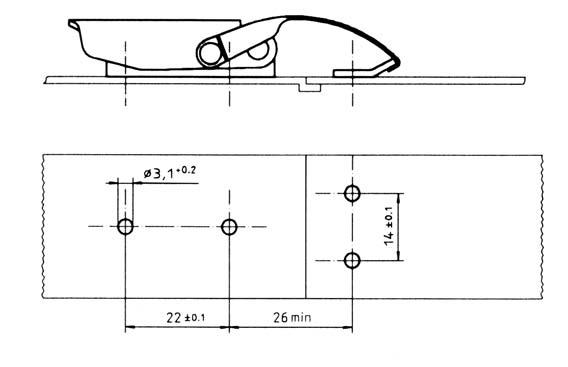

Installation Dimensions  LLLD Series
Draw Hook Latch / Draw Hook Strike
CLIP Latch/ Clip Strike

Bent Clip Latch / Adapted Componenet Contur
