LatchLock Heavy Series

HLLA Series (Heavy Duty Adjustable)

This Series is a versatile range of tension latches, these latches have an open or concealed base. It is also available with a secondary locking mechanism

Latches HLLA51Z HLLA51S HLLAWS HLLAX51Z
HLLAX51S HLLAXWS HLLAY51Z HLLAY51S HLLALX51Z
HLLACBX51Z
Strikes HS51Z HS51S HSWS HSG50S

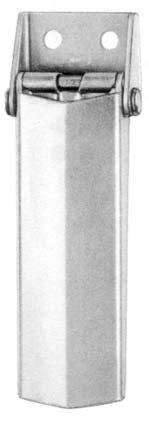

HLLALP Series (Heavy Duty AdjustableLow Profile)

This Series is a versatile range of tension latches, these latches have an open or concealed base. It is also available with a secondary locking mechanism

Latches HLLALP63Z HLLAPLPWZ
Strikes HS51C

Heavy DutyLatches Adusjtable HLLA Series

Installation Dimensions HLLA Series Max tensile strength 6000 N Adjustable Drawhook Available with secondary lock and HASP and lift spring

Select diameter D and distance L in accordance with the strike and latch style

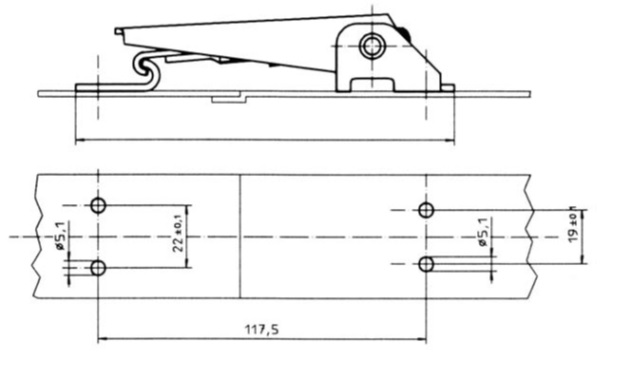

Latch / Short-type Strike

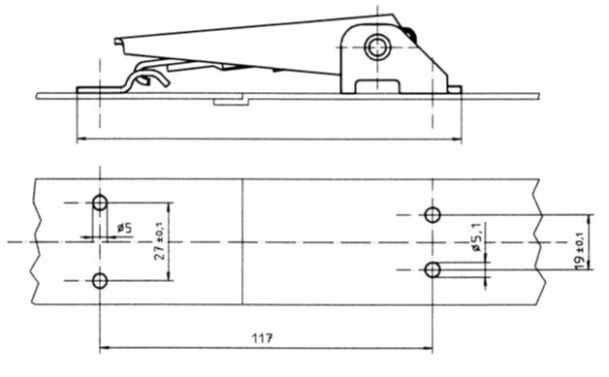

Latch / strike with guidance
