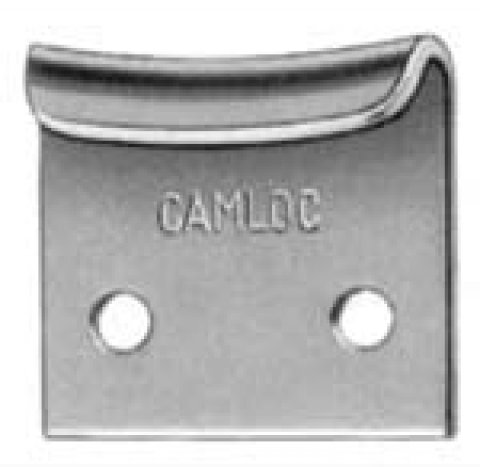

Latchlocks > Light Duty Strike for spring steel drawhook latch

1429L9-1BP

Alternative LatchLock Part #: LSBC31S

This part 1429L9-1BP has become absolete, due to the broken tool. We recommend to use the following LathLock part number LSBC31S

Properties

Material GradeStainless steel Max. Tensile Strength1500 N Max. Working Load1000N Max. Tensile Strength with hooked wire drawhook latch1100 N Max. Working Load with hooked wire drawhook latch800 N

Mounting Details

Mounting TypeHoles for riveting or screw fixing Hole Dia. D3.1 Hole Distance L14
