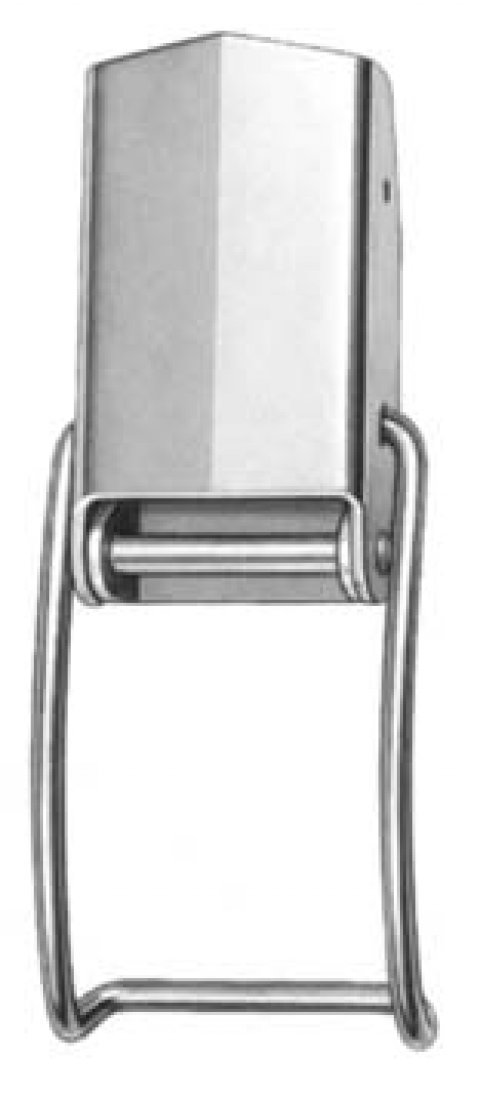

Latchlocks > Light Duty Tension Latch with hooked wire drawhook

1429L02-3-1BP

Alternative LatchLock Part #: LLLCM31S

This part 1429L02-3-1BP has become absolete, due to the broken tool. We recommend to use the following LathLock part number LLLCM31S

Properties

Material GradeStainless steel Max. Tensile Strength1100 N Max. Working Load800 N

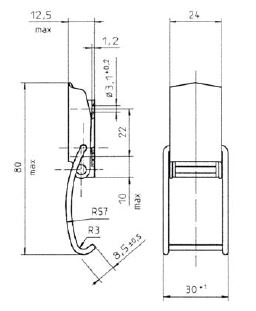

Mounting Details

Mounting TypeHoles for riveting or screw fixing Hole Dia. D3.1 Hole Distance L22
